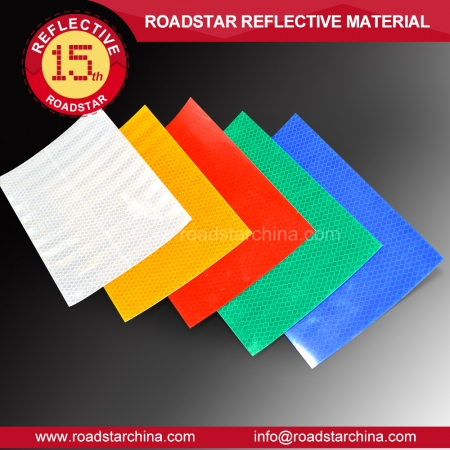

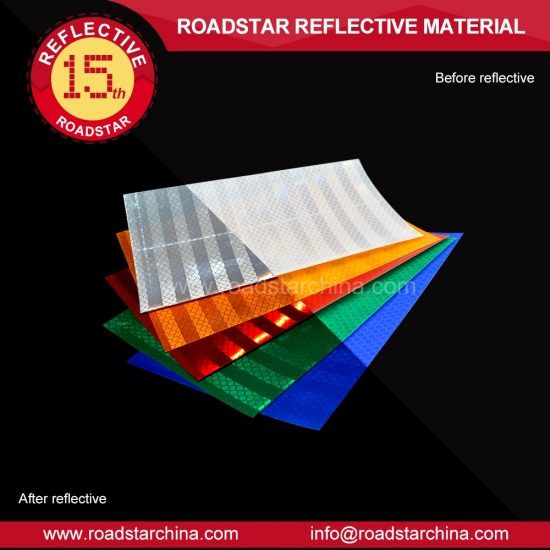

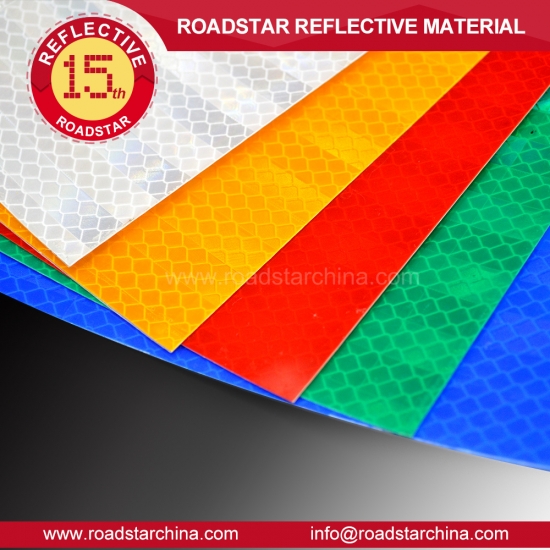

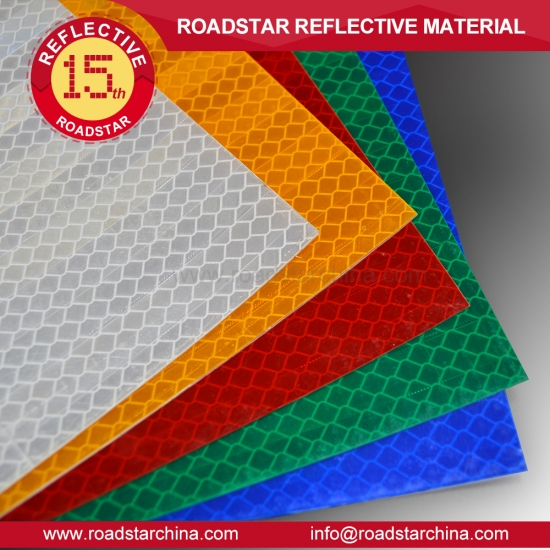

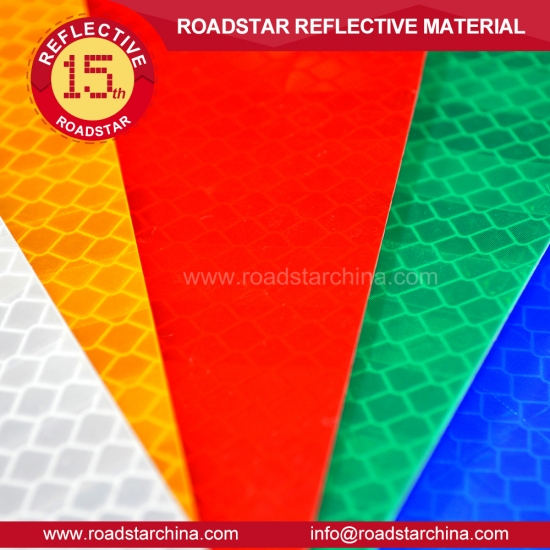

High Intensity grade prismatic reflective sheeting for traffic sign

High Intensity grade prismatic reflective sheeting for traffic sign

Size: 1.24m×45.7 m per roll
Color: white, yellow, red, green, blue, orange, brown
Weather resistance ability: 10 years
Top layer: PMMA resin
Weight of Release paper : 160g/sqm
Adhesive Type: pressure-sensitive adhesive;
Suitable film layer: Aluminum, steel
Printing method: screen printing inks special for reflective material is recommended.
Operating temperature: 18℃~28℃
Working temperature: -20℃~60℃

  • Product Detail

RS-1980 High Intensity Grade Prismatic Reflective Sheeting

FEATURES

Micro prismatic structure, high intensity, good weather resistance.Easy to make; screen printing is available.

APPLICATION

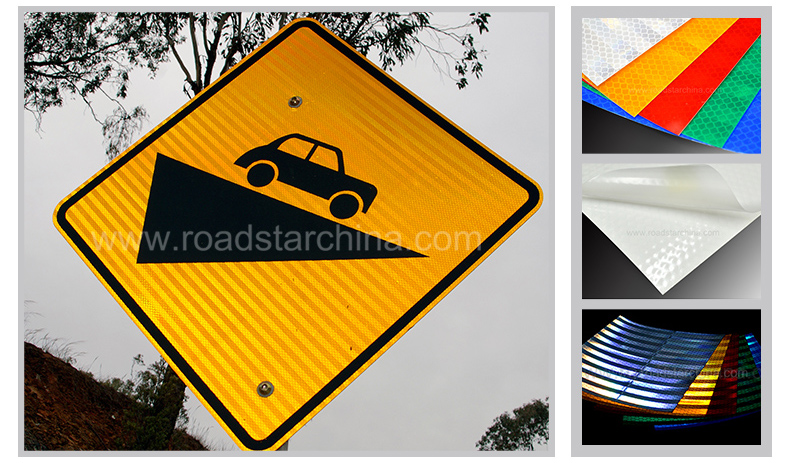

Traffic sign and road safety signs.



GENERAL DESCRIPTION

RS-1980 belongs to prismatic reflective film. It a whole new generation reflective material, adopting retro-reflective cube pyramid structure, and combining with coating, composite, embossing process manufacturing. It possesses an excellent retro-reflective performance, good durability and self-adhesive, providing the safest security for the driver. It is suitable for screen printing and computer cutting.


PRECAUTIONS

Shipping & payment:

Package: 1rolls per carton

Delivery time: After payment or deposit, the items would be delivered in 7days.
Export port: Xiamen port or as request.


Storage:

It should be store in the storehouse, where the condition is ventilated, dry and cool. The suitable temperature is between 10~40℃, the humidity is less than 70%.


FAQ


What is the difference between glass bead surfaces and prismatic surface.

There are two basic types of retroflective surfaces: glass bead surfaces and prismatic surfaces and both reflect light differently.

prismatic glass bead reflective



Glass bead reflective surfaces use glass spheres to collect light and bounce it back to the source. The rounded shape of the beads is what creates the retro reflectivity.

Prismatic reflective surfaces do the same thing but with sharp angles like prisms. They work like the glass beads but are more efficient, thus creating a brighter return of light.
