Home Reflective Sheeting HIP Prismatic Reflective Sheeting

Commercial Grade PET prismatic reflective sheeting

new products

Commercial Grade PET prismatic reflective sheeting

Size: 1.24m×45.7 m per roll
Color: white, yellow, red, green, blue, orange, brown
Service life: 3 years
Top layer: PET
Adhesive Type: pressure-sensitive adhesive;
Suitable film layer: Aluminum, steel
Printing method: Excellent computer cutting
Operating temperature: 18℃~28℃
Working temperature: -20℃~60℃

  • Product Detail

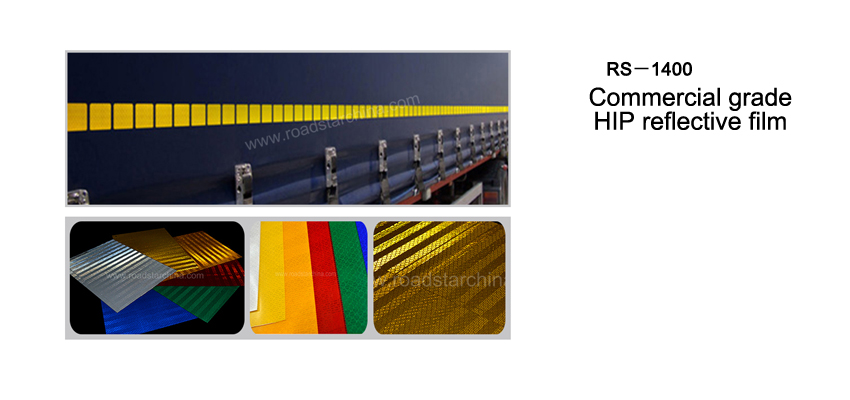

RS-1400 Commercial Grade PET Prismatic Reflective Sheeting

FEATURES

Micro prismatic structure, good weather resistance.Easy to make; screen printing is available.

Reflective index:
Serious Adhesive type (O.A.)Observation Angle Entrance Angle Maximum retro-reflective index cd·1x-1·m² Suitable bottom plate
White  Yellow  Red  Green  Blue Orange
RS1400

(PSA)

0.2°

-4°

300 190 75 20 80

Aluminum plate

30° 140 100 28 23 10

-4° 18 12 8 6 5
30° 7 5 2 1 0.4


APPLICATION

Advertising signs, temporary construction signs.


GENERAL DESCRIPTION

RS-1400 PET reflective sheeting adopted micro prism technology. The technology is different from Glass beads reflection principle that adopted by common reflective film. Each micro cube link arrangement forming precise reflection array. By using this technology, not only the reflective performance would glows in many times, but also the wide-angle performance would improve into a higher level.


PRECAUTIONS

Shipping & payment:

Package: 1rolls per carton

Delivery time: After payment or deposit, the items would be delivered in 7days.
Export port: Xiamen port or as request.


Storage:

It should be store in the storehouse, where the condition is ventilated, dry and cool. The suitable temperature is between 10~40℃, the humidity is less than 70%.


FAQ


What is the difference between glass bead surfaces and prismatic surface.

There are two basic types of retroflective surfaces: glass bead surfaces and prismatic surfaces and both reflect light differently.

prismatic glass bead reflective



Glass bead reflective surfaces use glass spheres to collect light and bounce it back to the source. The rounded shape of the beads is what creates the retro reflectivity.

Prismatic reflective surfaces do the same thing but with sharp angles like prisms. They work like the glass beads but are more efficient, thus creating a brighter return of light.
