ANSI/ISEA 107-2015
American National Standard for High-Visibility Safety Apparel and Accessories
This new edition consolidates the requirements of ANSI/ISEA 107-2010 and ANSI/ISEA 207, American National Standard for High-Visibility Public Safety Vests in an effort to establish a single, comprehensive document that considers all occupational tasks. The standard continues to present three performance classes of garments based on the amount of visible materials and design attributes incorporated into the final configuration, and identifies garment types based on expected use settings and work activities being performed. These are designated as off-road (type O), roadway and temporary traffic control (type R), or public safety activities (type P).
Background Material and Retroreflective Requirements
Garment Type |
Type "0" |
Type "R" |
Type "P" |
Supplemental Items |
Accessories |
||||
Designation |
Off-road |
Roadway |
Fire, Police, EMS Personnel |
Garments with Legs, including Gaiters |
Gloves |
Arm or Leg Bands |
Headwear |
||
Performance Class |
Class 1 |
Class 2 |
Class 3 |
Class 2 |
Class 3 |
Class E |
NA |
NA |
NA |
Background Material Amounts |
217 in2 |
775 in2* |
1240 in2** |
450 in2 |
775 in2 |
465 in2 |
10 in2 |
24 in2 |
78 in2 |
Retroreflective Material Amounts |
155 in2 |
201 in2 |
310 in2 |
201 in2 |
310 in2 |
109 in2 |
10 in2 |
24 in2 |
10 in2 |
Width Minimums of Retroreflective Material |
1" |
1.38" 1" for split trim designs |
2" 1" for split trim designs |
2" 1" for split trim designs |
2" 1" for split trim designs |
2" 1" for split trim designs |
1" |
1" |
1" |
Previous Standard and Class |
ANSI 107 Class 1 |
ANSI 107 Class 2 |
ANSI 107 Class 3 |
ANSI 207 |
NEW! |
ANSI 107 Class E |
NEW! |
NEW! |
Headwear |

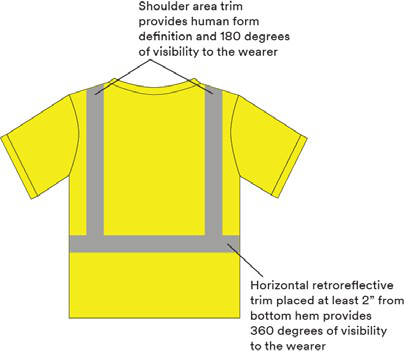

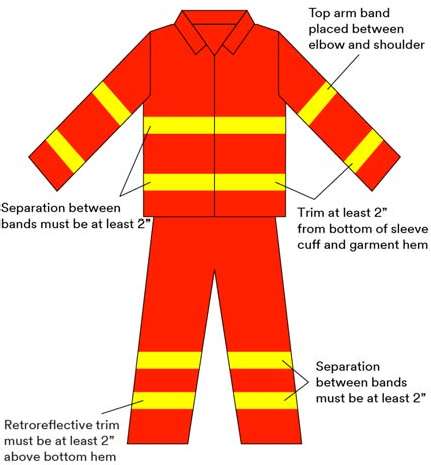

Responding to user concerns, the 2015 standard makes allowance for garments sized to fit smaller workers, and adds specifications for accessories such as gloves and armbands. The standard details the performance requirements for all materials used in the construction of compliant high-visibility safety apparel (HVSA), specifies labeling requirements to identify the garment by performance class, type and by its flame resistance characteristics as defined in the standard and expands the examples of garment configurations to illustrate compliant and non-compliant designs.
To comply with ANSI/ISEA 107-2015, a garment’s background material, and retroreflective or combined-performance material must be tested by an accredited laboratory. The manufacturer of the finished item then verifies that the garment or headwear meets all the requirements of the standard, and provides a Declaration of Conformity for each model. Examples of test forms and the Declaration of Conformity are included in the standard and located in the resource section below.
