Item No.: RS-1100
Size: 1.24m×45.7 m per roll

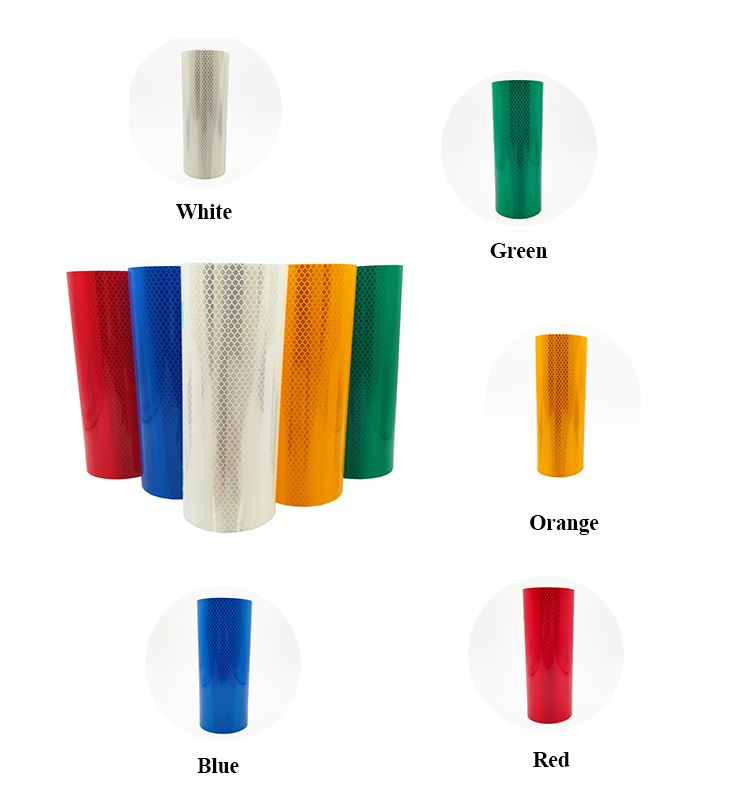

Color: white, yellow, red, green, blue, orange, brown
Service life: 5 years
Top layer: PET
Adhesive Type: pressure-sensitive adhesive;
Suitable bottom plate: Aluminum, steel
Printing method: Excellent computer cutting, can be printed by PET ink
Operating temperature: 18℃～28℃
Working temperature: －20℃～60℃
RS-1100 High intensity Grade PET Glass Beads Reflective Sheeting
Reflective data:
|
Item No. |
Adhesive type |
Observation Angle |
Entrance Angle |
Maximum retro-reflective index |
Suitable bottom plate |
|||||
|
White |
Yellow |
Red |
Green |
Blue |
Orange |
Aluminum plate
|
||||
|
RS1100 |
（PSA） |
0.2° |
-4° |
250 |
170 |
45 |
45 |
20 |
12 |
|
|
30° |
150 |
100 |
25 |
25 |
10 |
6.5 |
||||
|
1° |
-4° |
20 |
12 |
3 |
3 |
1 |
0.8 |
|||
|
30° |
9 |
5 |
1 |
1 |
0.4 |
0.3 |
||||
GENERAL DESCRIPTION

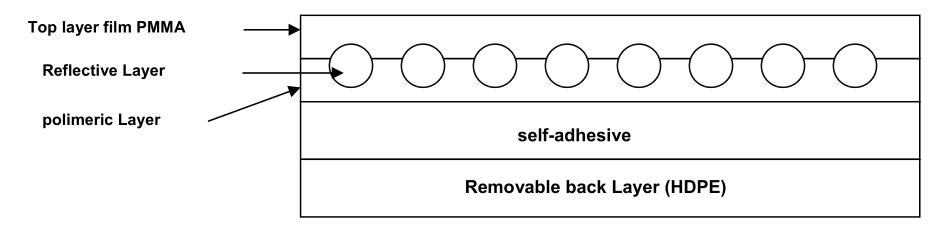

RS-1100 High intensity grade reflective sheeting is PET type Glass beads reflective film. It belongs to the capsule type. By crushing, it forms heat resistance film, possessing unique performance and visual distance. It has very good performance and visual range, which is suitable for plotter cutting performance.
FEATURES
Glass beads type, untearable, good weather resistance. Easy to make; screen printing is available.

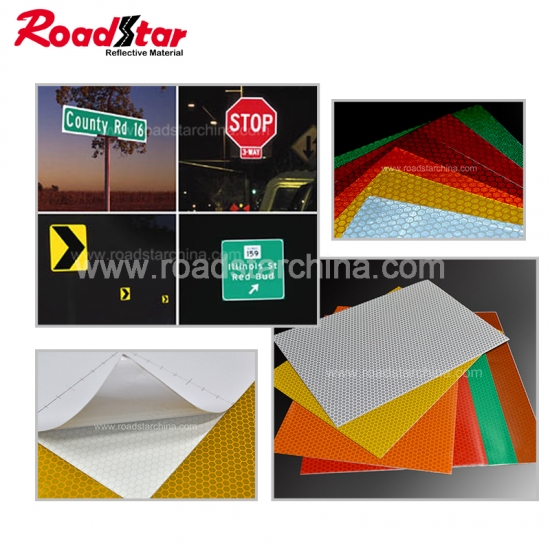

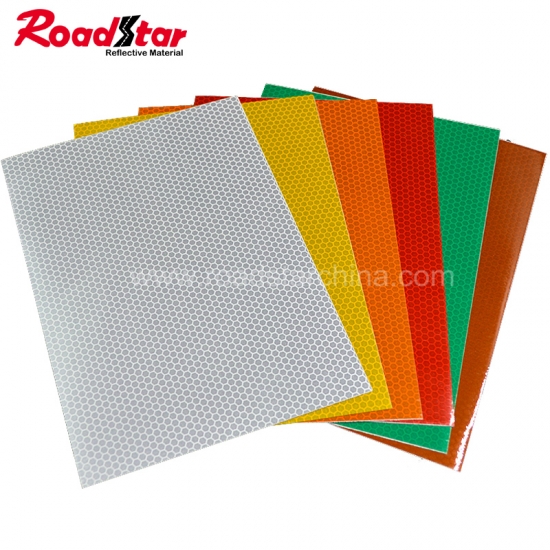

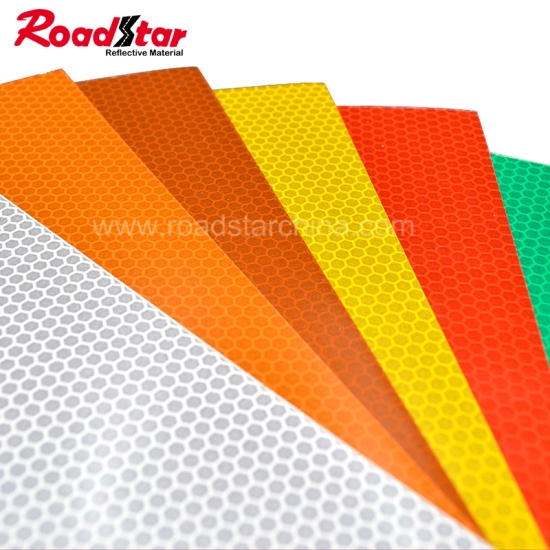

PRODUCT PICTURE
APPLICATION

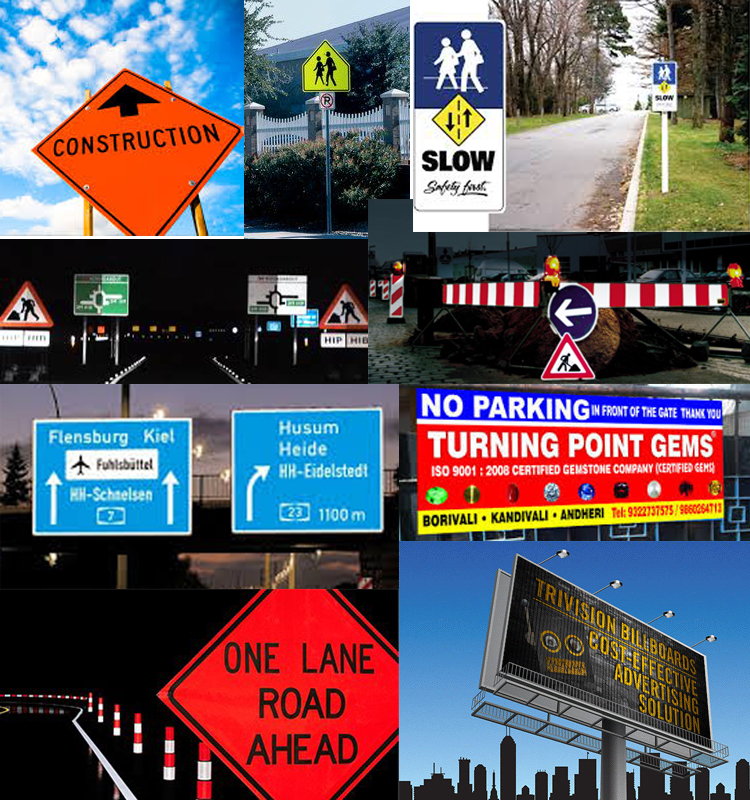

Traffic signs, construction sites, industrial safety signs.
PRECAUTIONS
Shipping & payment:

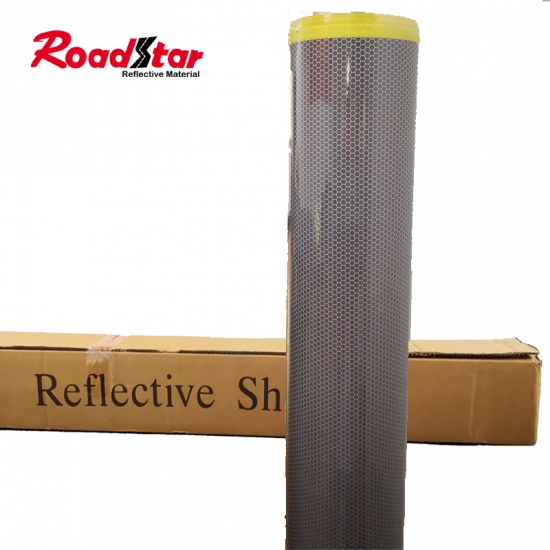

Package: 1rolls per carton
Delivery time: After payment or deposit, the items would be delivered in 7days.
Export port: Xiamen port or as request.
Storage:
It should be store in the storehouse, where the condition is ventilated, dry and cool. The suitable temperature is between 10~40℃, the humidity is less than 70%.
FAQ

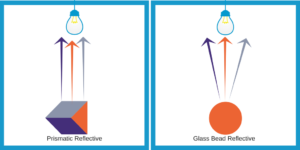

What is the difference between glass bead surfaces and prismatic surface.
There are two basic types of retroflective surfaces: glass bead surfaces and prismatic surfaces and both reflect light differently.
Glass bead reflective surfaces use glass spheres to collect light and bounce it back to the source. The rounded shape of the beads is what creates the retro reflectivity.
Prismatic reflective surfaces do the same thing but with sharp angles like prisms. They work like the glass beads but are more efficient, thus creating a brighter return of light.
