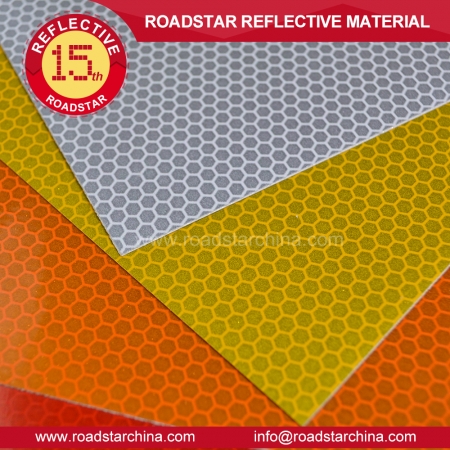

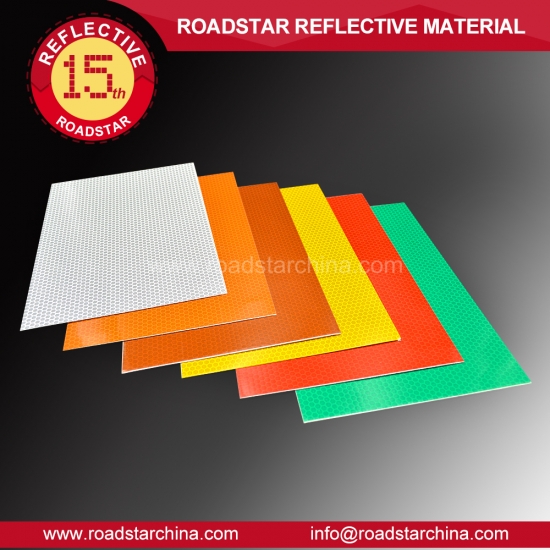

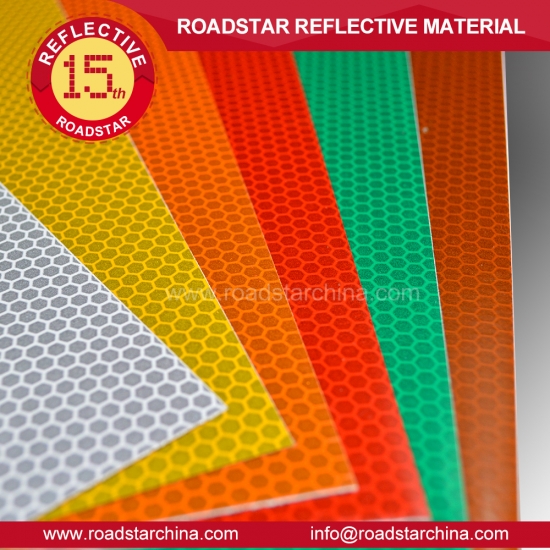

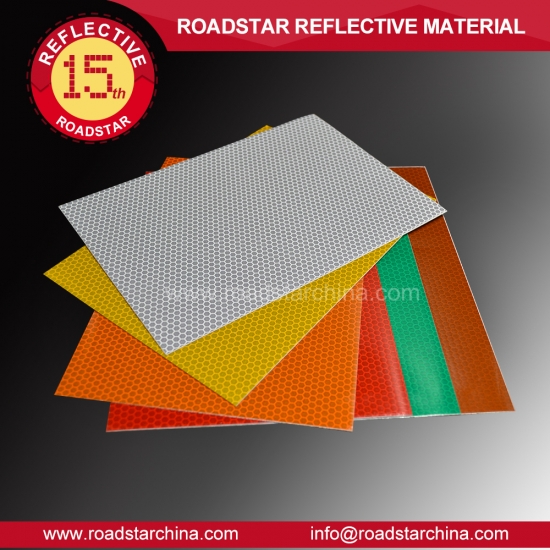

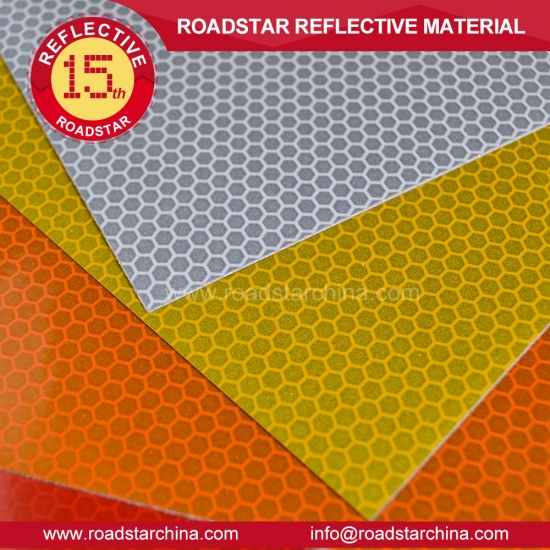

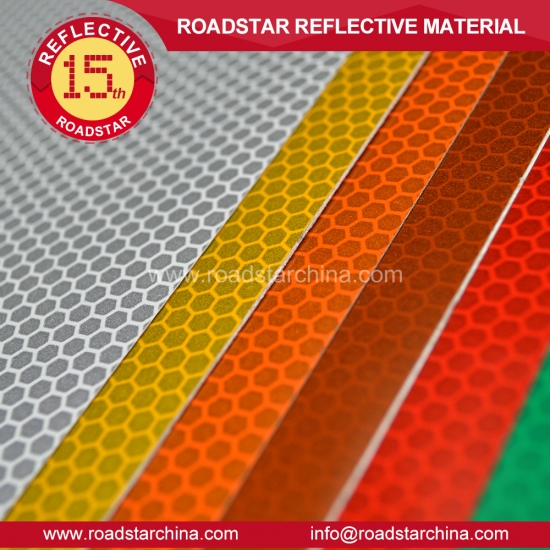

High intensity grade Acrylic glass beads retro reflective sheeting

new products

High intensity grade Acrylic glass beads retro reflective sheeting

Size: 1.24m×45.7 m per roll
Color: white, yellow, red, green, blue, orange, brown
Service life: 10 years
Top layer: Acrylic
Adhesive Type: pressure-sensitive adhesive;
Suitable film layer: Aluminum, steel
Printing method: Excellent computer cutting, silk screen printable
Operating temperature: 18℃~28℃
Working temperature: -20℃~60℃

  • Product Detail

RS-1200 High intensity Grade Acrylic Glass Beads Reflective Sheeting

FEATURES

Glass beads type, Tearable, good weather resistance.Easy to make; screen printing is available.


Reflective data:

Series

Adhesive type

(O.A)Observation Angle

Entrance Angle

Maximum retro-reflective index cd·1x-1·m²

Suitable bottom plate

White

Yellow

Red

Green

Blue

Orange

RS1200

PSA

0.2°

-4°

80

50

14

9

4



Aluminum plate

30°

30

22

6

3.5

1.5



-4°

5

3

2

1

0.6



30°

2

1.5

0.6

0.4

0.2




APPLICATION

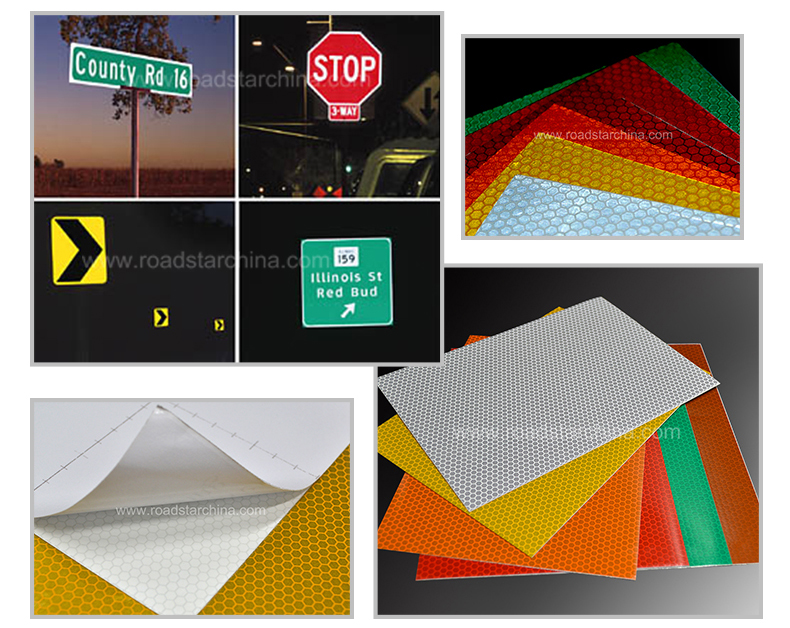

Traffic signs, construction sites, industrial safety signs.


GENERAL DESCRIPTION

RS-1400 PET reflective sheeting adopted micro prism technology. The technology is different from Glass beads reflection principle that adopted by common reflective film. Each micro cube link arrangement forming precise reflection array. By using this technology, not only the reflective performance would glows in many times, but also the wide-angle performance would improve into a higher level.

PRECAUTIONS

Shipping & payment:

Package: 1rolls per carton

Delivery time: After payment or deposit, the items would be delivered in 7days.
Export port: Xiamen port or as request.


Storage:

It should be store in the storehouse, where the condition is ventilated, dry and cool. The suitable temperature is between 10~40℃, the humidity is less than 70%.


FAQ

What is the difference between glass bead surfaces and prismatic surface.

There are two basic types of retroflective surfaces: glass bead surfaces and prismatic surfaces and both reflect light differently.

prismatic glass bead reflective



Glass bead reflective surfaces use glass spheres to collect light and bounce it back to the source. The rounded shape of the beads is what creates the retro reflectivity.

Prismatic reflective surfaces do the same thing but with sharp angles like prisms. They work like the glass beads but are more efficient, thus creating a brighter return of light.
